Hybrid Solar Streetlight

Streetlight made of renewable energy without wires

It combines solar and wind power complement each other's shortcomings to maximize energy efficiency

Hybrid streetlight
  • Solar and wind power renewable energy
  • CCTV Compound Smart green energy 30W 40W 50W
  • Hard-ano-Daising' technique is applied

HAEDONG

Feature

The Hybrid Street Lamps engineered by Haedong Tech utilize both wind and solar energy efficiency.

Cylindrical vertical axis aluminium wind generators are manufacture from aluminium to minimize magnetic field loss and power production regardless of wind direction.

Hybrid

It combines solar and wind power to maximize energy efficiency

Easy installation of hybrid systems

Efficient electrical system for new renewable energy of wind and solar power

Installation Cases

Garak Ecological Park in Gangseo-gu, Busan, Korea

Gwangju Technical High School, Buk-gu, Gwangju, Korea

Product details

Wind Power Generation Unit

- Cylindrical vertical axis aluminium wind turbin  produces power regardless of wind direction

- To minimize the loss of magnetic fields, 'Hard-ano-Daising' technique is applied

Solar Panel

High-efficiency single-crystal modules allow for the array of silicon atoms so that  they are efficient without interrupting the flow on electrons.

LED Lamp

- High-efficiency equipment certified product for SMPS waterproofing improve functionality to gain reliability and increased efficiency by using co-evolving circuits.

Controller

- MPPT hybrid(sunlight + wind power) charging controller only

- With battery overcharging and over-discharge control resolving safety issues

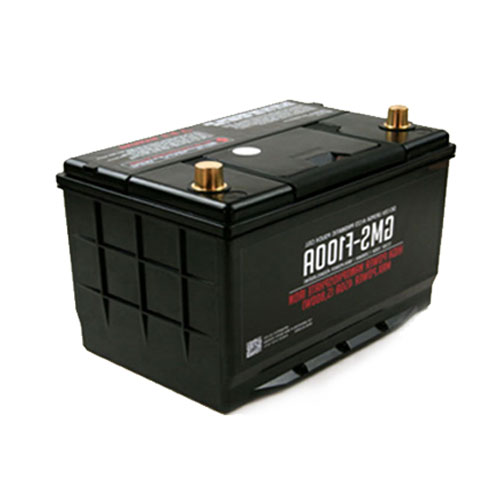

Battery

- Currently to secure stable voltage and high efficiency with the most stable lithium, phosphate iron battery안

- Excellent dust-proof and air-proof

- High reliability and battery life of more than 2,000 cycles a guaranteed

사양

Model nameSGAM-30WSGAM-40W
SGAM-50W
Wind power100W200W
300W
Solar power100W200W
300W
LED Lamp30W
40W
50W
Batterylithium phosphoric acid iron
(12V 100Ah)		lithium phosphoric acid iron
(12V 200Ah)
lithium phosphoric acid iron
(12V 300Ah)
ControllerHybrid controllerHybrid controller
Hybrid controller
Support, Connection PipeMaterialSTS304STS304
STS304
Height (M)4.55.56
FeaturesDistribution boardDistribution board
Distribution board
Number of days of absense5 days (LED display, CCTV installation for more than 3 days)
